Steel Table Unit Weight : Stainless Steel Tubes For Piping And General Piping Mory Industries Inc : Unit weight of steel = density x volume (area x length) w = 7850 x π /4 x h x d 2 (volume of cylnder = π /4 x h x d 2) w = 7850 x 3.14 / 4 x 0.001 x d 2.
Steel Table Unit Weight : Stainless Steel Tubes For Piping And General Piping Mory Industries Inc : Unit weight of steel = density x volume (area x length) w = 7850 x π /4 x h x d 2 (volume of cylnder = π /4 x h x d 2) w = 7850 x 3.14 / 4 x 0.001 x d 2.. 6 8 10 12 16 20 22 25 28 32 36 40 50 0.222 0.395 0.617 0.888 1.578 2.466 2.980 3.854 4.830 6.313 7.990 9.864 15.410 4510 2532 1621 1125 633 405 336 260 207 159 125 101 65 1) torsteel or twisted bar iss 1786 2) tistrong bar or grip bar iss 1139 steel india • www.steelindia.com • kirit vadalia : Wtot = n ⋅ ρ ⋅ as The description of api 5l seamless steel line pipe, outer diameter is 6 5/8 inch (168.3 mm), pipe wall thickness is sch 40 (7.11 mm or 0.280 inch), length 12 meters. Distance determining bolt hole location relative to the section. Department of civil engineering veer great india pipes appendices design of steel structures pdf steel building construction.

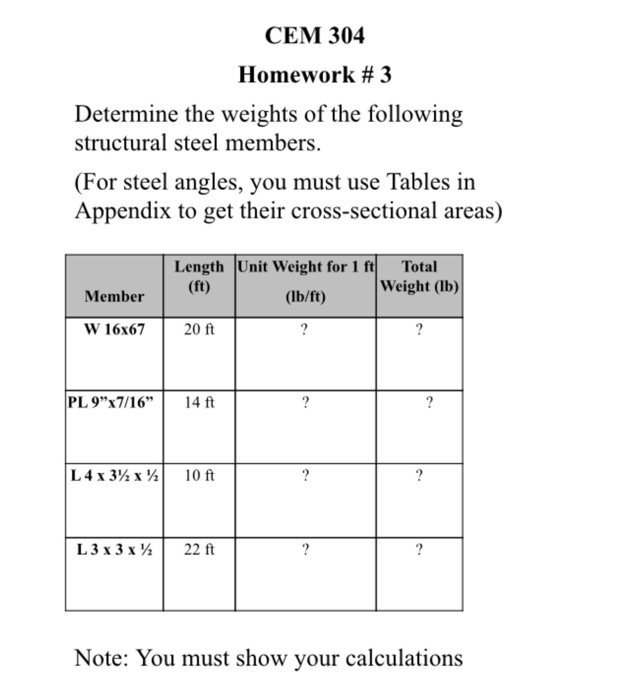

2) t = plate thickness (mm) plate thickness (mm) weight (kg/m 2) 1.6 12.6 2.0 15.7 2.5 19.6 3 23.6 3.2 25.1 4 31.4 5 39.3 6 47.1 8 62.8 10 78.5 12.5 98.1 15 118. Wtot = n ⋅ ρ ⋅ as The table below gives the size and shape dimensions, weight per foot and cross section area for structural steel angle per aisc. Formulas are based on nominal weights at.2836 lbs. Ms plate weight chart in kg.

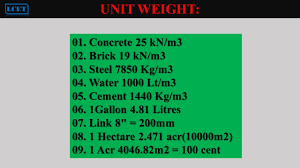

Unit Weights Of Construction Materials Download Table from www.researchgate.net These are used as sections in windows , grills , gates , stairs , truck / bus body building , ship building earth strips , etc. It is the ratio of the weight of steel per unit volume. The table below gives the size and shape dimensions, weight per foot and cross section area for structural steel angle per aisc. S 100 mm size (mm) section weight (kg/mtr) wt.per pc (6mtr) no.of pcs per mt 35 x 35 x 5 2.60 15.60 64 35 x 35 x 6 3.00 18.00 56 38 x 38 x 3 1.71 10.26 97 40 x 40 x 5 3.00 18.00 56 40 x 40 x 6 3.50 21.00 48. Steel sheets and plates are typical stocked in 36, 48, and 60 widths and 96, 120, and 144 lengths. Unit weight of steel is 7850 kg/m³. Π x r 2 x l = 3.1416 x 10 2 x 1000 = 314,160 mm 3 = 314.16 cm 3 (r = 1/2 x diameter, l = 1 m = 1000 mm). Weight (kg/m) surface area (m²/m) 1 l20*3 0.889 0.078 2 l20*4 1.145 0.077 3 l25*3 1.124 0.098 4 l25*4 1.459 0.097 5 l30*3 1.373 0.117 6
Fill out the information below and it will tell you how heavy that piece of material is.
We know the density of steel = 7850kg/m 3. Department of civil engineering veer surendra sai university technology burla 768018 odisha india. The exact composition of the material will affect the weight of the actual piece. Its si unit is kg/m³. Indian standard structural steel table pdf. Metals & materials / 1 minute of reading. Size leg1 x leg2 x thickness. W = 7.85 t (1) where w = weight of steel plate (kg/m. In this calculation the density of reinforcement steel is assumed equal to ρ = 7850 kg/m. How to calculate weight of steel bars: Weights of other materials in pounds per *cubic foot simple steel weight formulas note: 20 x 20 x 3 0.9 75 x 75 x 10 11.00 25 x 25 x 3 1.1 90 x 90 x 8 10.8 25 x 25 x 5 1.8 90 x 90 x 10 13.4 30 x 30 x 3 1.4 100 x 100 x 6 9.2 35 x 35 x 5 2.6 100 x 100 x 8 12.1 40 x 40 x 3 1.8 100 x 100 x 10 14.9 Mild steel weight chart sizes & weights of hot rolled steel (long) bought to you by:
pdf steel table by r.agor (m.k.s units and s.i.units) birla publications book free download Its si unit is kg/m³. Formulas are based on nominal weights at.2836 lbs. Weight of hot rolles mild steel plates can be calculated as. S 100 mm size (mm) section weight (kg/mtr) wt.per pc (6mtr) no.of pcs per mt 35 x 35 x 5 2.60 15.60 64 35 x 35 x 6 3.00 18.00 56 38 x 38 x 3 1.71 10.26 97 40 x 40 x 5 3.00 18.00 56 40 x 40 x 6 3.50 21.00 48.
Weight Density Of Aluminum 6061 G Cm3 Lbs In3 Kg M3 G Ml Lb Ft3 G Mm3 Cubic Inch from www.theworldmaterial.com Unit weight of steel is 7850 kg/m³. Angles size in mm weight per meter in k.g. They are calculated using average densities for the materials. W = 7.85 t (1) where w = weight of steel plate (kg/m. Distance determining bolt hole location relative to the section. Metal gets heavy, and whether you want to see how much shipping is likely to be, or if your vehicle (or back) can handle it, it's good to know what your order weighs. 6 8 10 12 16 20 22 25 28 32 36 40 50 0.222 0.395 0.617 0.888 1.578 2.466 2.980 3.854 4.830 6.313 7.990 9.864 15.410 4510 2532 1621 1125 633 405 336 260 207 159 125 101 65 1) torsteel or twisted bar iss 1786 2) tistrong bar or grip bar iss 1139 steel india • www.steelindia.com • kirit vadalia : It is also called the specific weight of steel.
Department of civil engineering veer great india pipes appendices design of steel structures pdf steel building construction.

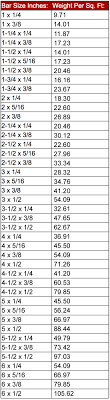

The unit weight of steel γ is specified between 77.0 kn/m 3 and 78.5 kn/m 3. Distance determining bolt hole location relative to the section. W = 7.85 t (1) where w = weight of steel plate (kg/m. Ms angle steel weight chart & size no. Weight (kg/m) surface area (m²/m) 1 l20*3 0.889 0.078 2 l20*4 1.145 0.077 3 l25*3 1.124 0.098 4 l25*4 1.459 0.097 5 l30*3 1.373 0.117 6 Size in mm weight per meter in k.g. Π x r 2 x l = 3.1416 x 10 2 x 1000 = 314,160 mm 3 = 314.16 cm 3 (r = 1/2 x diameter, l = 1 m = 1000 mm). How to calculate weight of steel bars: S 100 mm size (mm) section weight (kg/mtr) wt.per pc (6mtr) no.of pcs per mt 35 x 35 x 5 2.60 15.60 64 35 x 35 x 6 3.00 18.00 56 38 x 38 x 3 1.71 10.26 97 40 x 40 x 5 3.00 18.00 56 40 x 40 x 6 3.50 21.00 48. These are used as sections in windows , grills , gates , stairs , truck / bus body building , ship building earth strips , etc. Indian standard structural steel table pdf. This plate weight chart apply exclusively to mild steel. The information provided in good faith and is for your guidance only.
Angles size in mm weight per meter in k.g. W= 24649 / 4 x 0.001 x d 2. In this calculation the density of reinforcement steel is assumed equal to ρ = 7850 kg/m. Was established in 1907 and was the first integrated steel plant in india. The unit weight of steel γ is specified between 77.0 kn/m 3 and 78.5 kn/m 3.
Weight Deposited G Of Zinc On Low Carbon Steel At Constant Depth Of Download Table from www.researchgate.net Iron is a soft, malleable metal. 6 8 10 12 16 20 22 25 28 32 36 40 50 0.222 0.395 0.617 0.888 1.578 2.466 2.980 3.854 4.830 6.313 7.990 9.864 15.410 4510 2532 1621 1125 633 405 336 260 207 159 125 101 65 1) torsteel or twisted bar iss 1786 2) tistrong bar or grip bar iss 1139 steel india • www.steelindia.com • kirit vadalia : After estimating it is very important to know the unit weight of steel bars because, we estimate as 100 meter 20mm ø bar or 100 feet 16mm ø bar, etc (ø is the symbol of diameter). Angles size in mm weight per meter in k.g. Department of civil engineering veer great india pipes appendices design of steel structures pdf steel building construction. To help with that, we've got our handy weight calculator here. Visit the post for more. Size in mm weight per meter in k.g.

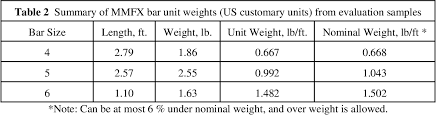

20 x 20 x 3 0.9 75 x 75 x 10 11.00 25 x 25 x 3 1.1 90 x 90 x 8 10.8 25 x 25 x 5 1.8 90 x 90 x 10 13.4 30 x 30 x 3 1.4 100 x 100 x 6 9.2 35 x 35 x 5 2.6 100 x 100 x 8 12.1 40 x 40 x 3 1.8 100 x 100 x 10 14.9
The weights calculated on this steel weight calculator page are for guidance only. It is the ratio of the weight of steel per unit volume. Department of civil engineering veer great india pipes appendices design of steel structures pdf steel building construction. It commenced its operations in 1911, with a capacity of 1,00,000 tonnes per annum of ingots and expanded to a million tonnes per annum of saleable steel by the mid fifties. We know the density of steel = 7850kg/m 3. Steel is created by heating iron in the presence of oxygen. W = 7.85 t (1) where w = weight of steel plate (kg/m. Contents profile located at jamshedpur, tata steel ltd. 6 8 10 12 16 20 22 25 28 32 36 40 50 0.222 0.395 0.617 0.888 1.578 2.466 2.980 3.854 4.830 6.313 7.990 9.864 15.410 4510 2532 1621 1125 633 405 336 260 207 159 125 101 65 1) torsteel or twisted bar iss 1786 2) tistrong bar or grip bar iss 1139 steel india • www.steelindia.com • kirit vadalia : Angles size in mm weight per meter in k.g. The information provided in good faith and is for your guidance only. Visit the post for more. Formulas are based on nominal weights at.2836 lbs.
